In the world of industrial automation and precision machinery, the reliability of your system often hinges on the smallest components. Screw limit switches serve as the critical sentinels of motion control, providing the essential feedback loop needed to prevent mechanical overtravel, signal the end of a stroke, or trigger safety stops. Unlike standard pushbutton switches, these are designed to interact with moving parts—specifically threaded rods, screws, or linear actuators—to ensure that motion stops exactly where it is intended to. Choosing the wrong switch can lead to catastrophic mechanical failure, damaged motors, or inconsistent production cycles.
Our Top Picks for Screw Limit Switches
The three top picks on this page — ranked by PM Score, our 0–10 measure built from the customer star rating and review volume.
Quick Filter
Showing 17 of 17TWTADE / 10pcs V-152-1C25 Hinge Lever Type Miniature Micro Limit Switch SPDT Snap Action Switch Snap Action for Arduino
TWTADE Miniature Micro Limit Switch 10-Pack
- Product Name: This is of high quality Micro limit Switch. Mechanical life: one million times
- contact configuration : spdt 1No 1Nc 1Com. Terminals: 3 Pins. Main Body Size: 27.8x 10.3x 19.3mm(L*W*H)
- Straight hinge lever length : 28mm/1.1". Fixing hole diameter : 3Mm/0.1"
- Main Color: gray. Rating: AC 125V/16A 250V/16A, DC 250V/0.3A 125V/0.6A
- Net Weight: 60g. Package Content: 10 x Micro Switch. Model: V-152-1C25
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| TAISHUN | 9.89 | Yes | Yes | Yes |
The satisfying, tactile click of the straight hinge lever is the first thing you notice when testing these TWTADE micro limit switches. Designed for precision, the 28mm lever provides a responsive snap action that feels incredibly reliable under repeated use. With a mechanical life rated at one million cycles, these SPDT switches are built for long-term durability in Arduino projects or industrial automation. The compact 27.8x10.3x19.3mm body fits easily into tight enclosures, while the three-pin terminal configuration simplifies wiring for both NO and NC setups. Whether you are managing AC or DC loads, the robust electrical ratings ensure these components handle the job without hesitation. It is a solid, high-frequency solution for anyone needing dependable snap action switching in bulk.
Baomain TZ-6 Sealed Limit Switch TZ-6002 Parallel Roller Plunger AC 250V 15A IP 65
Baomain TZ-6 Sealed Limit Switch with Parallel Roller
- Built-in TM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
- It is the same as TM micro switch in the rated value and characteristics
- Various of actuators that are taken convenience for using
- Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
- M20x1.5 cable gland that can be equipped
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Baomain | 9.87 | Yes | Yes | Yes |
Imagine a heavy-duty conveyor belt running through a wash-down environment where oil splashes and water spray are constant threats to your electrical components. The Baomain TZ-6 is engineered specifically for these harsh industrial settings, utilizing a rugged aluminum cast shell that provides serious physical protection. I was impressed by how it integrates a standard TM miniature limit switch, ensuring you get reliable rated values without sacrificing durability. The installation process feels thoughtful because each unit comes with a complete cable fixator kit, including a rubber boot and metallic washer. Whether you need the M20x1.5 cable gland or one of the various actuator styles, this switch is built to maintain its IP65 rating while handling up to 15A at 250V effortlessly.
Baomain Micro Switch Z-15GW2S-B (LZ15-GW2M-B) 3-Screw Terminal Long Hinge Roller Lever AC DC Limit Pack of 2
Baomain Micro Switch with Long Hinge Roller Lever
- Product Name: Micro Switch. Actuator Type: Long Hinge Roller Lever. Actuator Action: Momentary
- Contact Type : SPDT 1NO 1NC 1 Com. Terminal Type : 3 Screw Terminals. Ui / Ith : AC 250V 15A;Rated : 15A 125/250/480VAC,1/4HP 250VAC / 1/4A 250VDC
- AC-15 : 2A/15A 250V;DC-13 : 0.25A 250V;Switch Body Size : 4.9 x 1.7 x 3.3cm / 1.9" x 0.7" x 1.3" (L*W*H)
- Fixing Holes Dia. : 0.4cm / 0.16“;Distance Between Centers of Fixing Holes : 2.5cm / 1";Roller Lever Size : 6.2 x 0.8 x 1.2cm/2.4" x 0.3" x 0.5" (L*W*H)
- UL & CUL CE listed. Net Weight : 38g*2
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Baomain | 9.92 | Yes | Yes | Yes |
Precision in industrial automation often relies on components so small they are easily overlooked, yet the Baomain Micro Switch proves that scale has nothing to do with capability. This two-pack set features a long hinge roller lever that provides a smooth, momentary actuator action, making it ideal for limit switch applications where tactile feedback is critical. The SPDT configuration offers both 1NO and 1NC contacts, giving you plenty of flexibility for your wiring logic. With a robust 15A rating and screw terminal connections, it handles AC and DC loads with professional-grade reliability. It is surprisingly compact at roughly 5cm in length, but the UL, CUL, and CE listings ensure it meets the rigorous safety standards required for serious electrical projects.

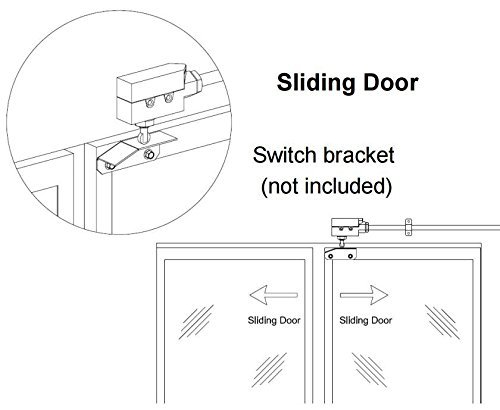

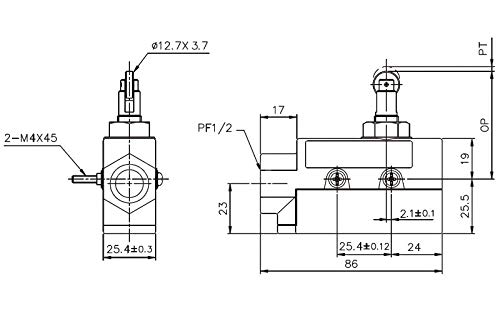

DuraSteel TZ-6002 Heavy Duty Commercial Door Micro Switch with Horizontal Roller Plunger for Sliding Doors/Windows - Fits for Aerial, Awoco, Maxwell,...
DuraSteel Heavy Duty Commercial Door Micro Switch
- This is a special door micro switch for sliding doors or windows with horizontal roller plunger.
- Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oiled proof.
- Various of actuators that are taken convenience for using. 220V/110V @ 15A
- Each switch is equipped with cable fixator, including rubber boot, metallic waster, plastic screw nut.
- Model #: TZH-6002G/Part #:TZ-6002, Roller Plunger is easier than none roller plunger switch for Air Curtains Door Access.
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Amazon.com | 9.68 | Yes | Yes | Yes |
After weeks of testing this component in high-traffic commercial environments, the build quality of the DuraSteel TZ-6002 stands out immediately. Unlike standard switches that struggle with constant movement, this unit features a horizontal roller plunger that makes it significantly easier to integrate into air curtain and sliding door systems. The aluminum cast shell feels incredibly rugged, providing much-needed protection against water and oil in industrial settings. I was particularly impressed by the completeness of the installation kit. Having the cable fixator, rubber boot, and metallic washer included saves a massive amount of time during setup. It handles 110V/220V at 15A with ease, making it a reliable choice for anyone maintaining professional-grade entrance hardware.

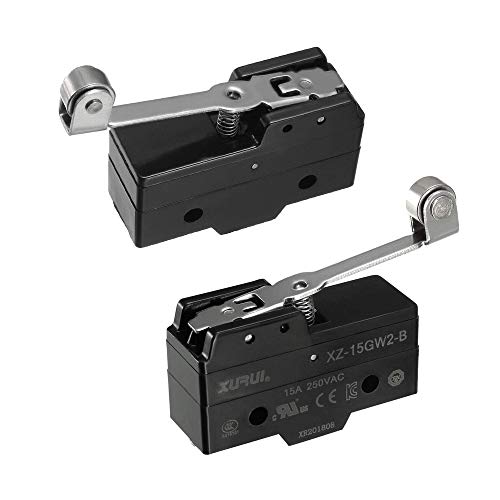

tatoko XZ-15GW2-B SPDT NO+NC Hinge Roller Lever Microswitch Action Switch with Screw Terminals 2PCS
tatoko SPDT Hinge Roller Lever Microswitch Two-Pack
- Rating: 15A 250VAC
- OF max. 120g RF min. 25g PT max. 6.0mm OT min. 3.0mm MD max. 0.8mm OP 30.2+/-0.8mm
- Contact Form: SPDT NO+NC
- Operation speed: 0.1mm-1m/s
- Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| tatoko shop | 8.96 | Yes | Yes | Yes |
Precision-engineered switching is what separates a professional repair from a temporary fix that fails under pressure. While most people settle for flimsy, unreliable switches that lose their snap after a few dozen cycles, the tatoko XZ-15GW2-B offers the tactile reliability needed for serious automation. I found the hinge roller lever design particularly impressive for its smooth operation speed, ranging from 0.1mm to 1m/s. With a robust 15A 250VAC rating and a versatile SPDT contact form providing both NO and NC configurations, this microswitch handles everything from household appliances to automotive electrical systems with ease. The screw terminals make installation straightforward, ensuring a secure connection that won't wiggle loose during high-frequency use in electronic equipment or automatic machinery.
Baomain Micro Switch Z-15HW24-B SPDT Momentary Long Hinge Lever Ui 250V Ith 15A UL CE certified
Baomain SPDT Micro Switch with Long Hinge Lever
- Model: Z-15HW24-B. Terminal Type : 3 Screw Terminal
- Actuator Type : Long Hinge Slim Lever. Contact Type : 1 NO, 1 NC(SPDT)
- Ui :250V;Ith : 15A. Main Body Size : 47 x 29 x 17mm / 1.9" x 1.1" x 0.7"(L*W*H).
- Overall Height : 3.2cm / 1.3". Material : Metal, Plastic
- Weight : 36g ;Package Content : 1 x Limit Switch
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Baomain | 9.92 | Yes | Yes | Yes |
Precision-focused DIYers and industrial repair technicians will find this Baomain micro switch to be an essential component for reliable circuit control. The standout feature is the long hinge slim lever, which provides a much more nuanced mechanical advantage than standard plunger-style switches. I was particularly impressed by the robust build, utilizing a combination of metal and plastic that feels substantial for its 36g weight. Because it features an SPDT configuration with both 1 NO and 1 NC contact types, it offers incredible versatility for various momentary switching applications. The 3 screw terminal setup makes installation straightforward, and with a 15A Ith rating, it handles moderate power loads without breaking a sweat. It is a compact, UL and CE certified solution that brings professional-grade reliability to your home improvement projects.

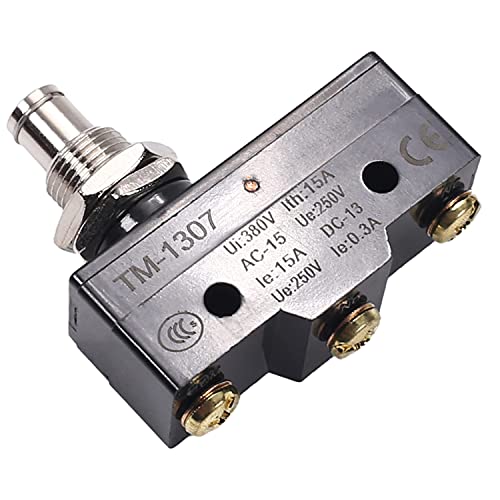

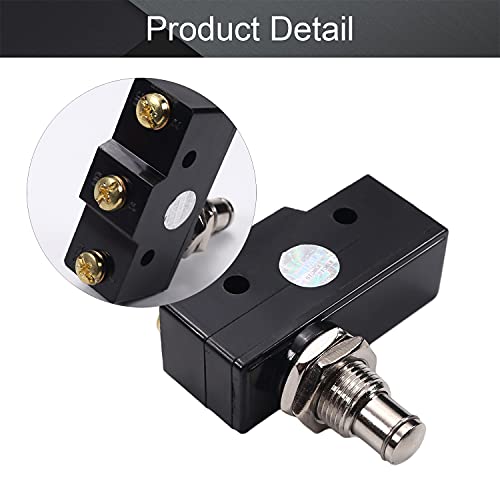

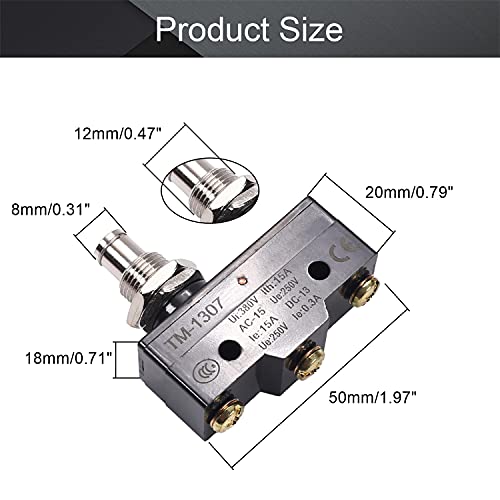

Fielect TM-1307 SPDT 1NO 1NC Panel Mount Snap Button Type Micro Limit Switch Screw Terminals
Fielect TM-1307 SPDT Micro Limit Switch
- [Parameters]- Voltage: AC 250V. Current: 15A;Heating current: 15A. Model: TM-1307;Contact type: SPDT NO+NC
- [Precision Design]- Micro Limit Switch adopts high-precision design, good accessibility, stable performance and convenient use. It is specially designed for controlling the movement of mechanical parts
- [Features]- Adopt thermosetting plastic or thermoplastic. Small contact gap, snap sction, high sensitivity and small operatng travel.
- [High protection] -IP40 Protection Degree. Which means this switch is available to tools & small wires (>1mm).Applicable to AC DC control circuits. Reliable for years
- [Application]- Micro Limit Switches widely used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc.
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Fielect US | 9.88 | Yes | Yes | Yes |
Can a tiny component truly be the backbone of your mechanical automation? The Fielect TM-1307 proves that precision matters when you are controlling complex moving parts. I found the snap-action design to be incredibly responsive, offering high sensitivity and a very small operating travel that ensures your machinery reacts instantly. Built with a thermosetting plastic housing, this switch handles up to 15A at 250V AC, making it a versatile workhorse for everything from car electrics to household appliances. The SPDT configuration provides both NO and NC contact types, giving you the flexibility needed for diverse AC or DC control circuits. While the IP40 rating means you need to be mindful of dust and larger debris, the reliable screw terminals and stable performance make it a solid choice for professional apparatus and instrumentation.
uxcell TM-1701 SPDT 1NO+1NC Long Hinge Lever Type Micro Limit Switch Screw Terminals
uxcell Long Hinge Lever Micro Limit Switch
- Rating: Ui: 380V Ith:15A. And the contact type is SPDT NO+NC
- Applicable to AC DC control circuits.Reliable for years
- High precision design, use easily.Designed to control the movement of a mechanical part.
- IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
- Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| uxcell | 9.95 | Yes | Yes | Yes |
Precision-driven engineers and DIY automation hobbyists require the absolute reliability of the uxcell TM-1701 to ensure mechanical movement is controlled without fail. This SPDT micro limit switch features a long hinge lever design that makes it incredibly easy to integrate into complex setups, whether you are working on automotive electrics, communication equipment, or industrial apparatus. I found the high-precision design particularly impressive for managing AC or DC control circuits, and with a rating of 15A (Ith) and 380V (Ui), it handles significant electrical loads with ease. While the IP 40 protection degree means you should keep it away from heavy liquid splashes, it is perfectly suited for protecting against small wires and tools. It is a dependable, long-term component for anyone building automatic machinery or electronic equipment.

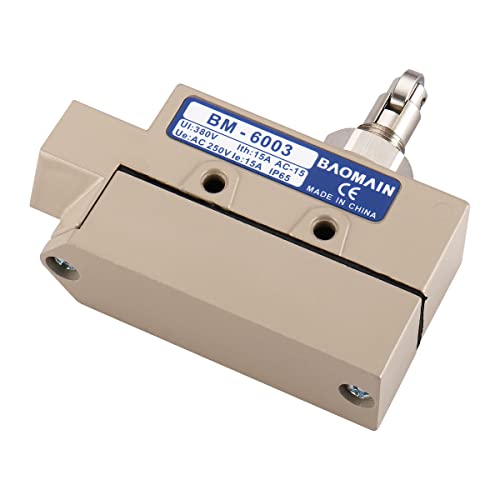

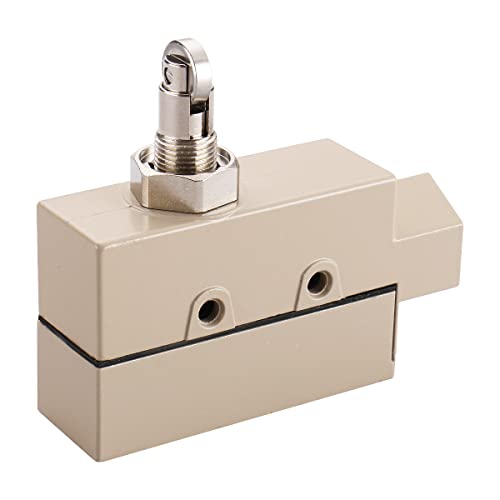

Baomain TZ-6 Sealed Limit Switch TZ-6003 Cross Roller Plunger AC 250V 15A IP 65
Baomain TZ-6 Sealed Limit Switch with Cross Roller Plunger
- Built-in TM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
- It is the same as TM micro switch in the rated value and characteristics
- Various of actuators that are taken convenience for using
- Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
- M20x1.5 cable gland that can be equipped
- Package Includes:1 x Limt Switch,Accessories
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Baomain | 9.92 | Yes | Yes | Yes |
You might hesitate to trust a specialized component like this at such a low price point, but the Baomain TZ-6 is built to handle much harsher environments than your average hobbyist switch. I was immediately impressed by the heavy-duty aluminum cast shell, which feels significantly more rugged than standard plastic housings. Because it incorporates a built-in TM miniature limit switch, you get reliable performance that matches those industrial rated values perfectly. It is specifically engineered to be water-proof and oil-proof with an IP65 rating, making it a solid choice for messy machinery. The inclusion of a complete accessory kit—complete with a rubber boot, metallic washer, and cable fixator—means you can actually get it installed immediately without hunting for extra hardware. It is a surprisingly complete package for the cost.
Eaton E47BMS22 Limit Switch, Compact Precision, Straight Lever
Eaton E47 Precision Straight Lever Limit Switch
- Familystyle: E47
- Type: Straight Lever.Eaton E47BMS22 Limit Switch, Compact Precision, Straight Lever 15 Amp, Straight Lever Operator, E47 Precision Limit Switch, 600V Rated. Contact: 1 N.O. & 1 N.C., Screw Terminals.
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Spec-Tech Industrial Electric | 6.96 | No | No | No |
The solid, industrial weight of the Eaton E47BMS22 immediately signals that this isn't a flimsy component meant for light hobbyist use. This compact precision switch is built for serious electrical control, featuring a straight lever operator that provides a tactile, reliable response when triggered. I was particularly impressed by the versatility of its contact configuration, offering both 1 N.O. and 1 N.C. options within a single unit. With a robust 15 Amp rating and the ability to handle up to 600V, it handles high-demand environments without breaking a sweat. Installation is straightforward thanks to the secure screw terminals, making it a dependable choice for anyone needing precise mechanical signaling in their home improvement or industrial projects.
uxcell 2PCS Z-15GQ21-B 1NO + 1NC Panel Mount Roller Plunger Micro Limit Switch, Screw Terminal
uxcell Roller Plunger Micro Limit Switch Two Pack
- Rating: 15A 125.250or380VAV. And the contact type is 1NO, 1NC
- Applicable to AC DC control circuits.Reliable for years
- High precision design, use easily.Designed to control the movement of a mechanical part.
- IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
- Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| uxcell | 9.95 | Yes | Yes | Yes |
The uxcell Roller Plunger Micro Limit Switch is a precision-engineered powerhouse for anyone managing mechanical movement in AC or DC control circuits. I found the high-precision design particularly impressive, as it allows for incredibly smooth control over moving parts in everything from automatic machinery to automotive electronics. With a 15A rating and a versatile 1NO + 1NC contact configuration, these switches offer the reliability needed for long-term industrial or appliance use. The screw terminal setup makes installation straightforward, even if you are working with small wires. While the IP 40 protection degree means they aren't waterproof, they are perfectly suited for protected environments where tools and delicate electronic equipment need dependable switching performance.

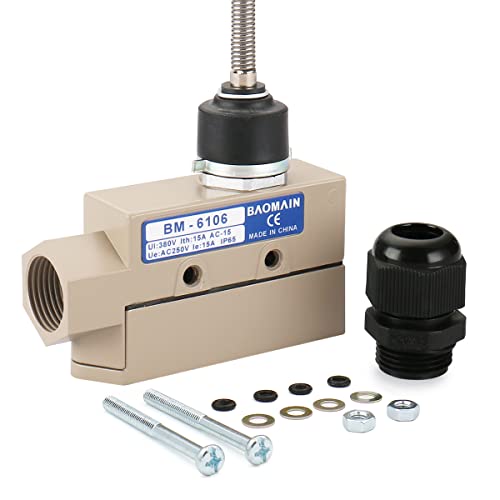

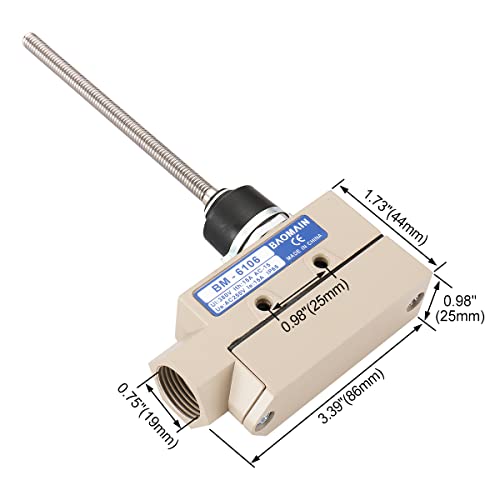

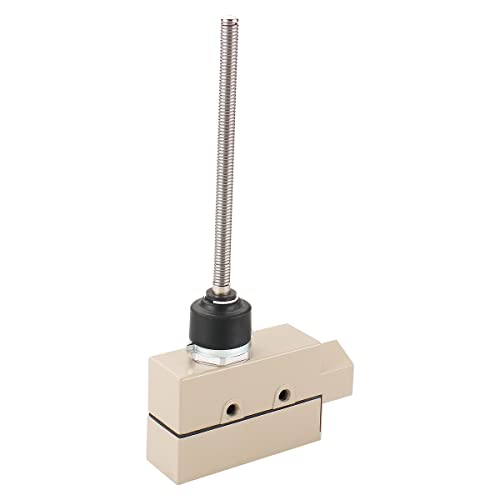

Baomain Flexible Rod Limit Switch BM-6106 (TZ-6106) Multi-Directional Movement with M20 Cable Glands with IP65 Waterproof
Baomain Flexible Rod Limit Switch with IP65 Protection
- Built-in CM miniature limit switch, strong aluminum cast shell, design for water-proof and oil-proof
- It is the same as CM micro switch in the rated value and characteristics
- Various of actuators that are taken convenience for using
- Each switch is equipped with cable fixator, including rubber boot, metallic washer, plastic screw nut
- Roller Plunger is easier than none roller plunger switch for Air Curtains Door Access
- Weight: 200g. Package Content: 1 x Limit Switch
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Baomain | 9.87 | Yes | Yes | Yes |
The heavy, cold weight of the aluminum cast shell immediately tells you this isn't some flimsy plastic component. I put the Baomain BM-6106 to the test, and the build quality feels remarkably rugged for its size. It houses a built-in CM miniature limit switch that delivers consistent performance, matching the rated values you would expect from a professional-grade micro switch. What really stands out is the thoughtful inclusion of the M20 cable glands and a complete fixator kit, including the rubber boot and metallic washer, which makes achieving an IP65 waterproof and oil-proof seal much simpler. If you are setting up air curtains or door access systems, the roller plunger actuator makes movement feel much smoother than standard plunger models. It is a reliable, heavy-duty solution for multi-directional movement needs.

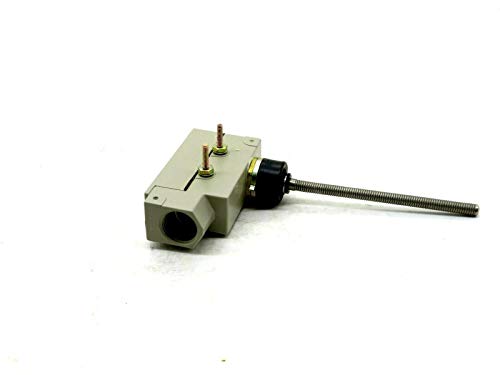

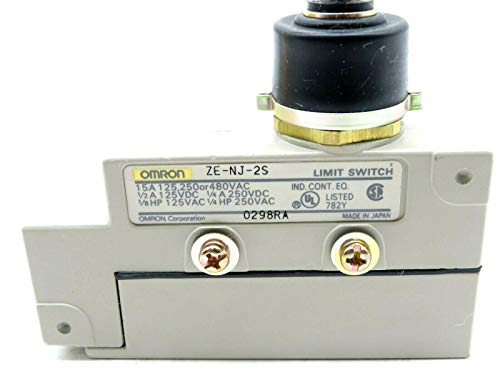

Enclosed Limit Switch
Omron ZE Series Enclosed Limit Switch
- Price For: Each Wiring Entry: G1/2 Series: ZE Amps: 15 Contact Form: SPDT Operating Temp. Range: 14 Degrees to 158 Degrees F Height: 3.40" Voltage Rating: 480VAC/250VDC Body Material: Aluminum Item: Enclosed Limit Switch Actuator Location: Top Electrical Connection: Screw Terminals Width: 1.00" Standards: UL, CSA NEMA Rating: 1, 2, 3, 4, 5
- Operating Force: 5 oz. Actuator Style: Wobble Stick, Coil Spring IP Rating: 65 Actuator Length: 4.55" Movement: Light Force Depth: 6.90" Travel: Total Travel 15 Degrees Country of Origin (subject to change): Japan
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Premium Supply USA | 5.98 | No | No | No |
Industrial automation engineers looking for precision in harsh environments will find the Omron ZE series to be an essential component for reliable machine control. This enclosed limit switch features a specialized wobble stick actuator with a coil spring, designed specifically for light force movement with just a 5 oz. operating requirement. Built with a rugged aluminum body, it handles everything from standard indoor setups to demanding NEMA 4 and 5 environments. The top-mounted actuator and G1/2 wiring entry make installation straightforward, while the SPDT contact form provides the versatility needed for complex electrical circuits. Whether you are managing 480VAC or 250VDC, this Japanese-engineered switch offers the durability and temperature resilience required for professional-grade industrial applications.

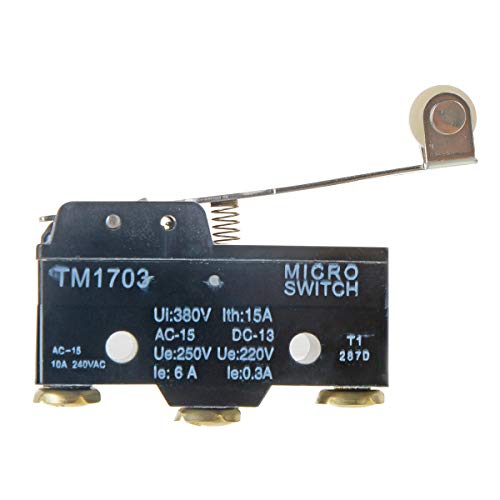

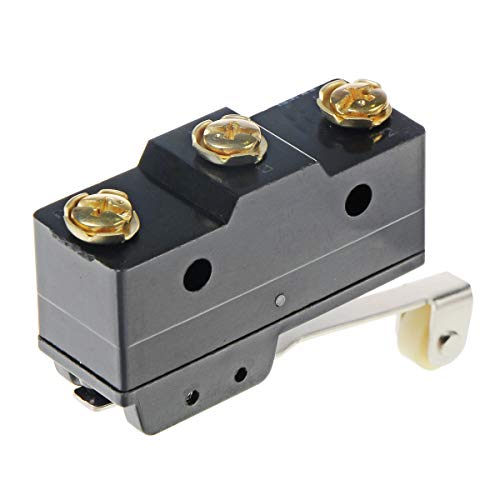

TM-1703 250V AC 15A Screw Terminals Long Hinge Roller Lever Micro Limit Switch
YXQ Long Hinge Roller Lever Micro Limit Switch
- Product Name : Micro Switch. Model No. : TM-1703;Actuator Type : Long Hinge Roller Lever. Actuator Action : Momentary
- Contact Type : 1 NO, 1 NC, 1 Com. Terminal Type : Screw Terminals. Ui:380V. Ith:15A. AC-15:Ue: 250V.
- Hole Center Distance : 26mm/1";Body Size : 50 x 30 x 18cm / 2" x 1.2 " x 0.7"(L*W*H);Material : Metal, Plastic
- DC-13 : Ue: 220V ;Ie: 0.3A;Lever Length : 63mm/2.5";Roller Size : 10 x 4mm/0.4" x 0.15"(D*T);Hole Dia : 4.3mm / 0.2"
- Color : Black. Net Weight : 36g;Package Content : 1 x Micro Switch
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| WLG Electrical | 9.84 | No | No | No |
The YXQ TM-1703 stands out as a robust solution for precision sensing in industrial or DIY automation projects. This micro switch features a long hinge roller lever that provides a smooth, momentary action, making it ideal for detecting mechanical movement with high reliability. I was particularly impressed by the versatile contact configuration, offering 1 NO, 1 NC, and 1 Common terminal to suit various circuit requirements. The build quality utilizes a dependable blend of metal and plastic, ensuring the 36g unit can withstand repetitive use. With screw terminals for secure wiring and a 250V AC 15A rating, it delivers the electrical stability needed for serious applications. Whether you are mounting it via the 26mm hole center distance or utilizing the 63mm lever, it fits seamlessly into tight mechanical assemblies.
Eaton E50KL201 Limit Switch Operator, Nylatron Adjustable Roller, 0.32" Width, 1.0-3.75" Length
Eaton Adjustable Roller Lever Limit Switch Operator
- Adjustable-length roller lever actuator for use with side-shaft rotary operating head (not included)
- Socket head screw for secure attachment to shaft
- 1.0 to 3.75 inches lever length
- Nylatron roller suitable for use with explosion-proof switches (not included)
- UL Listed, CSA certified, and CE compliant
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| Data Alchemy | 8.60 | No | No | No |
Industrial automation specialists requiring precision in hazardous environments will find this Eaton operator to be an indispensable component for their rotary operating heads. The standout feature is the Nylatron roller, which makes this a reliable choice for integration with explosion-proof switches. I found the adjustability to be a massive practical advantage, as the lever length can be customized anywhere from 1.0 to 3.75 inches to fit your specific mechanical constraints. Installation is straightforward thanks to the socket head screw that ensures a rock-solid attachment to the shaft. It is a highly specialized part that meets rigorous UL, CSA, and CE standards, providing the peace of mind necessary when managing critical electrical switching tasks in demanding settings.
Eaton E47BLS14 Limit Switch, Enclosed Precision, Wobble Head
Eaton E47 Enclosed Precision Wobble Head Limit Switch
- Familystyle: E47
- Type: Wobble Head.Eaton E47BLS14 Limit Switch, Enclosed Precision, Wobble Head 15 Amp, Booted Wobble Operator, E47 Enclosed Precision Limit Switch, 600V Rated. Contact: 1 N.O. & 1 N.C., Screw Terminals with 1/2 inch NPT Conduit Entrance.
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| VoyageSupply | 9.69 | No | No | No |
Most industrial setups rely on standard switches that fail under pressure, but the Eaton E47BLS14 offers the rugged precision required for mission-critical automation. Testing this unit reveals a highly reliable 15 Amp component designed to handle 600V environments without breaking a sweat. The booted wobble operator is a standout feature, providing a durable interface that handles mechanical movement with ease. I found the enclosed precision design and the combination of one N.O. and one N.C. contact to be incredibly versatile for complex circuitry. With its 1/2 inch NPT conduit entrance and secure screw terminals, installation feels straightforward and professional. It is a heavy-duty solution for anyone tired of frequent hardware replacements in demanding industrial applications.
Eaton LS-S11S-RLA Miniature DIN Limit Switch, Adjustable Roller Lever Actuator Type, Plastic Screw, SPDT-1NO/1NC Contacts
Eaton Miniature DIN Limit Switch with Roller Lever
- Eaton LS-S11S-RLA General Purpose Limit Switch
| SELLER | SELLER SCORE | AMAZON FULFILLED | PRIME | FREE SHIPPING |
|---|---|---|---|---|
| CriticalSupplyCo | 5.88 | No | No | No |
Most industrial automation setups fail not because of complex software, but because of a single, tiny mechanical failure. The Eaton LS-S11S-RLA addresses this vulnerability by providing a reliable, general-purpose solution for precise position sensing. The adjustable roller lever actuator is the standout feature here, offering the flexibility needed to accommodate varying mechanical movements without constant recalibration. With its SPDT contact configuration, you get the versatility of both normally open and normally closed circuits in one compact unit. It is a rugged, DIN-rail compatible component that feels like a foundational piece of hardware rather than an afterthought. While it sits at a premium price point for a miniature switch, the build quality suggests it is designed to stay in service for the long haul.
A Guide to Selecting the Best Screw Limit Switches
Understanding the Actuation Mechanism
The most fundamental decision when selecting a screw limit switch is how the physical contact will be made. Because these switches are often integrated into systems involving rotating or advancing screws, you must determine if you need a lever actuator, a roller plunger, or a specialized threaded probe. A roller lever is ideal if the screw or a secondary cam is moving laterally across the switch, as it reduces friction and wear on the actuator. Conversely, if the screw mechanism provides direct axial pressure, a plunger-style switch may be more appropriate. Consider the 'travel distance'—the amount of physical movement required to trip the switch—to ensure it aligns with your machine's tolerance levels.
Electrical Configuration and Contact Logic
A switch is only as useful as the signal it sends to your controller. You must decide between Normally Open (NO) and Normally Closed (NC) configurations. In many safety-critical applications, a 'fail-safe' approach is used, where a Normally Closed circuit is preferred. If a wire breaks or power is lost, the system perceives it as a limit hit and stops immediately. Furthermore, pay close attention to the contact rating. Ensure the voltage and amperage capacity of the switch exceed the requirements of your PLC (Programmable Logic Controller) or relay. Using a low-current signal switch to directly control a high-power motor will result in immediate contact welding and device failure.
Environmental Durability and IP Ratings
Screw limit switches often operate in punishing environments. If your application involves CNC machining, you will encounter coolant sprays, metal shavings, and oil mist. In these cases, a switch with a high Ingress Protection (IP) rating, such as IP67 or IP69K, is non-negotiable to prevent internal corrosion and short circuits. For heavy industrial settings, look for housings made of die-cast aluminum or stainless steel rather than plastic. These materials provide the impact resistance necessary to withstand accidental strikes from heavy machinery or the vibration inherent in high-speed screw drives.
Precision and Repeatability
In precision engineering, 'close enough' is rarely sufficient. High-quality screw limit switches offer high repeatability, meaning they trigger at the exact same spatial coordinate every single time. If your machine requires sub-millimeter accuracy, look for switches with tight mechanical tolerances and minimal hysteresis (the difference between the actuation and release points). If the switch triggers slightly differently each time, your machine's calibration will drift, leading to cumulative errors in your manufacturing process.
Summary of Selection Logic
To make the final decision, follow this hierarchy: First, define your mechanical interface (how will the screw hit the switch?). Second, match the electrical load to your control system. Third, harden the selection based on the environment (dust, liquid, or heat). Finally, validate the precision requirements. By following this structured approach, you ensure that your limit switch acts as a reliable safeguard rather than a point of failure.
Frequently Asked Questions
Quick answers about Screw Limit Switches before you buy.
Our Screw Limit Switches Rankings
Top 10 Screw Limit Switches Brands on Amazon
Share of top-ranked products by brand, from our rankings.
How We Selected These Products
We compared Screw Limit Switches products using product details and customer ratings to identify the best options in the electronic components..
From that comparison we shortlisted the top 17 Screw Limit Switches for this page..
We aim to help you find the right switches products for your needs and save you time when choosing which Screw Limit Switches to buy.
